Manage federation sources

Federation in OpenCatalogi is per-peer: each instance you subscribe to via the Directory publishes a set of catalogs that your instance can then include in its own search. This tutorial walks the admin-side configuration of one peer end-to-end.

Goal​

By the end you will have added one peer directory, verified the connection, tuned its integration level, and confirmed the peer shows up as a source in federated search.

Prerequisites​

  • Admin rights on OpenCatalogi.
  • The peer's directory URL — typically https://<peer>/index.php/apps/opencatalogi/api/directory.
  • Outbound HTTPS reach from your Nextcloud server to the peer. Federation is HTTP-only; an outbound firewall block breaks it.

Steps​

  1. Open Directory in the app navigation. The page lists every peer this instance has subscribed to and shows three status counters — available, degraded, unreachable — along with each peer's directory URL and integration level. Click Add directory in the toolbar.

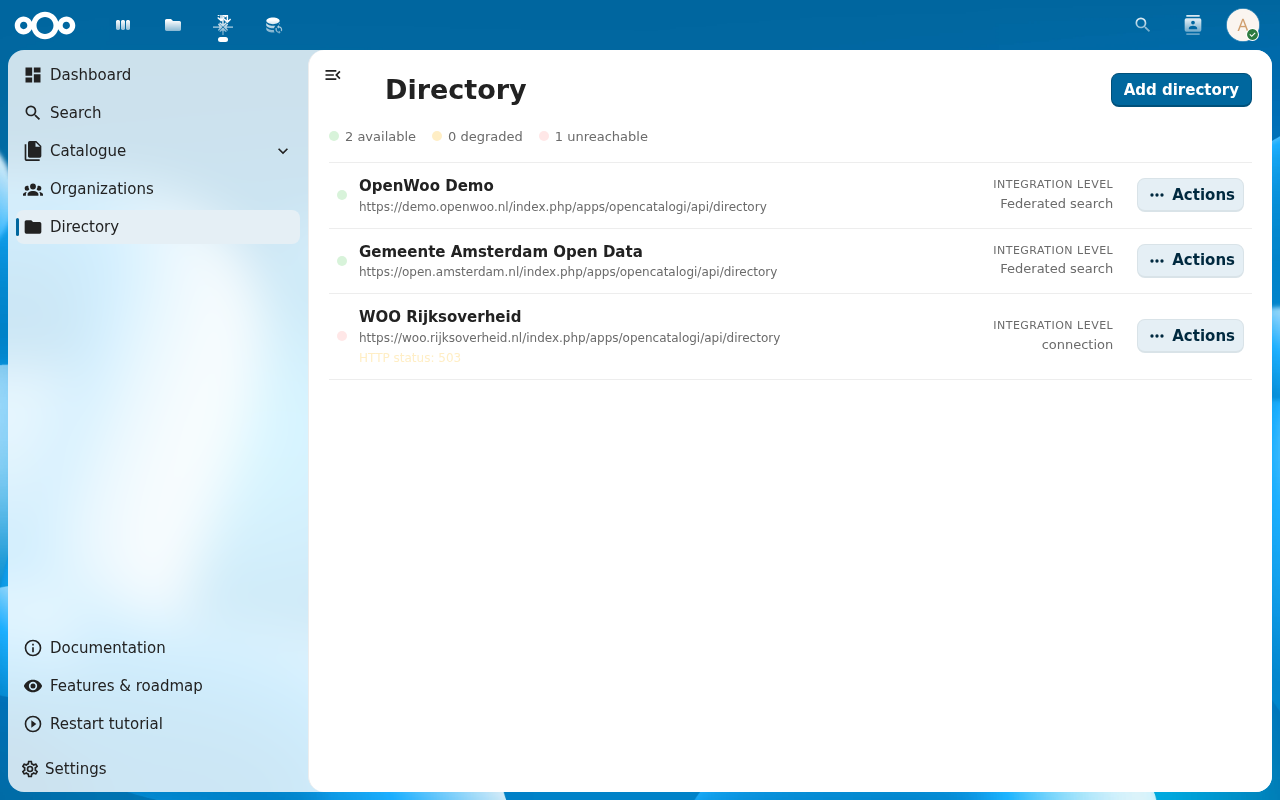

    Directory list with three peers and the Add directory button

  2. The dialog asks for a single field: the peer's directory URL. Paste it and click Add. There is no separate Test connection step — the sync runs immediately and the dialog reports the result.

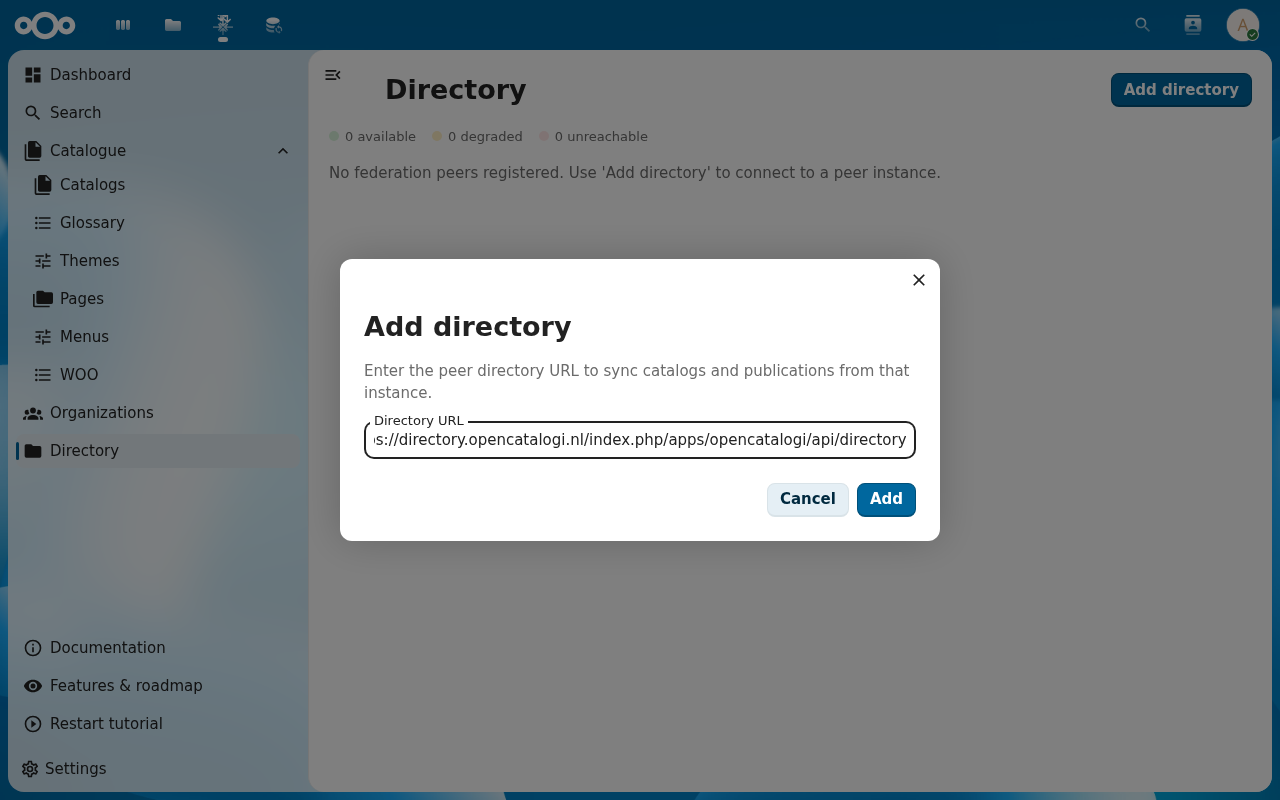

    Add directory dialog with the peer&#39;s directory URL filled in

  3. On success the dialog swaps to a confirmation panel with a per-run breakdown: New listings, Updated listings, Failed listings. Zero across the board means the peer responded but had no catalogs to expose; a positive New count means catalogs were imported and are now searchable. Click Close.

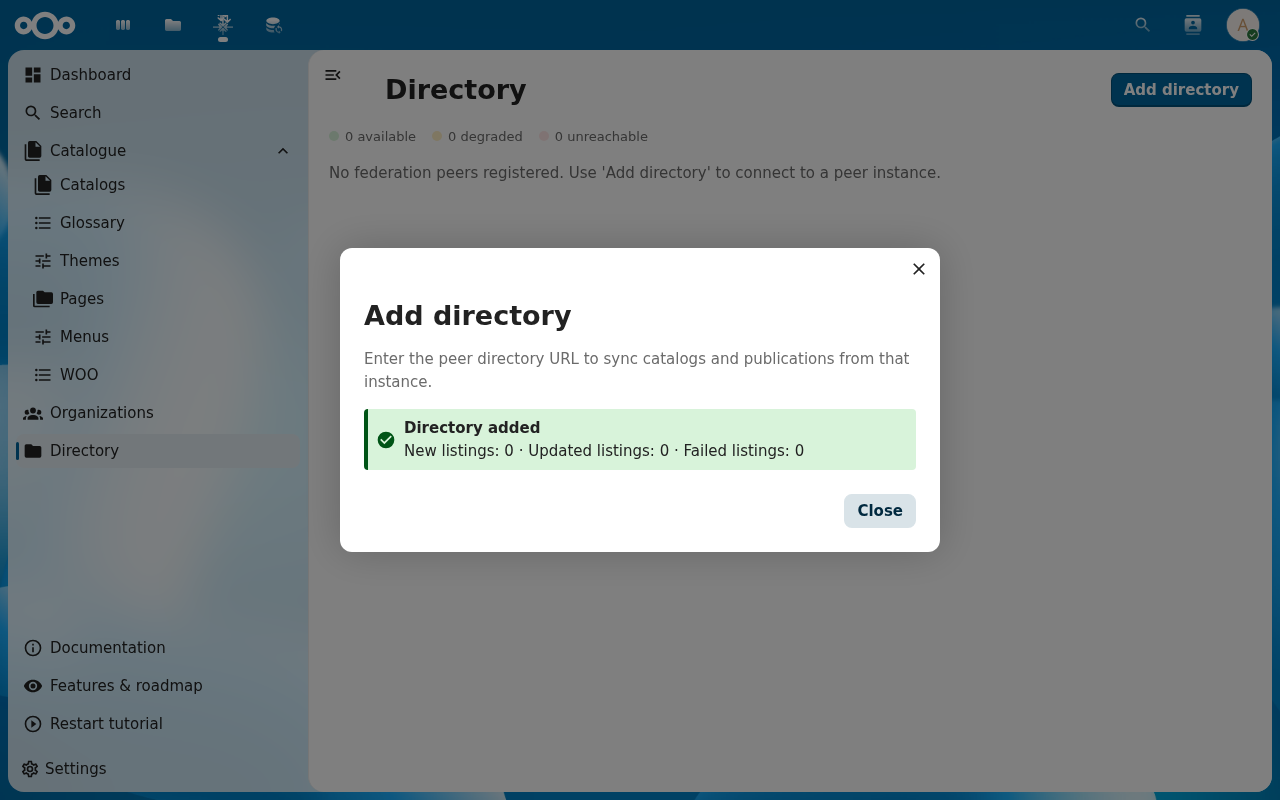

    Directory added confirmation showing new, updated, and failed listing counts

  4. To retune a peer later, click Actions → Edit on its row in the Directory list. The dialog exposes the peer's integration level — Federated search (this instance queries the peer during search fan-out) or Connection (the peer is subscribed but not queried during search). The directory URL is read-only; to point at a different peer, remove this entry and add a new one. Save when done.

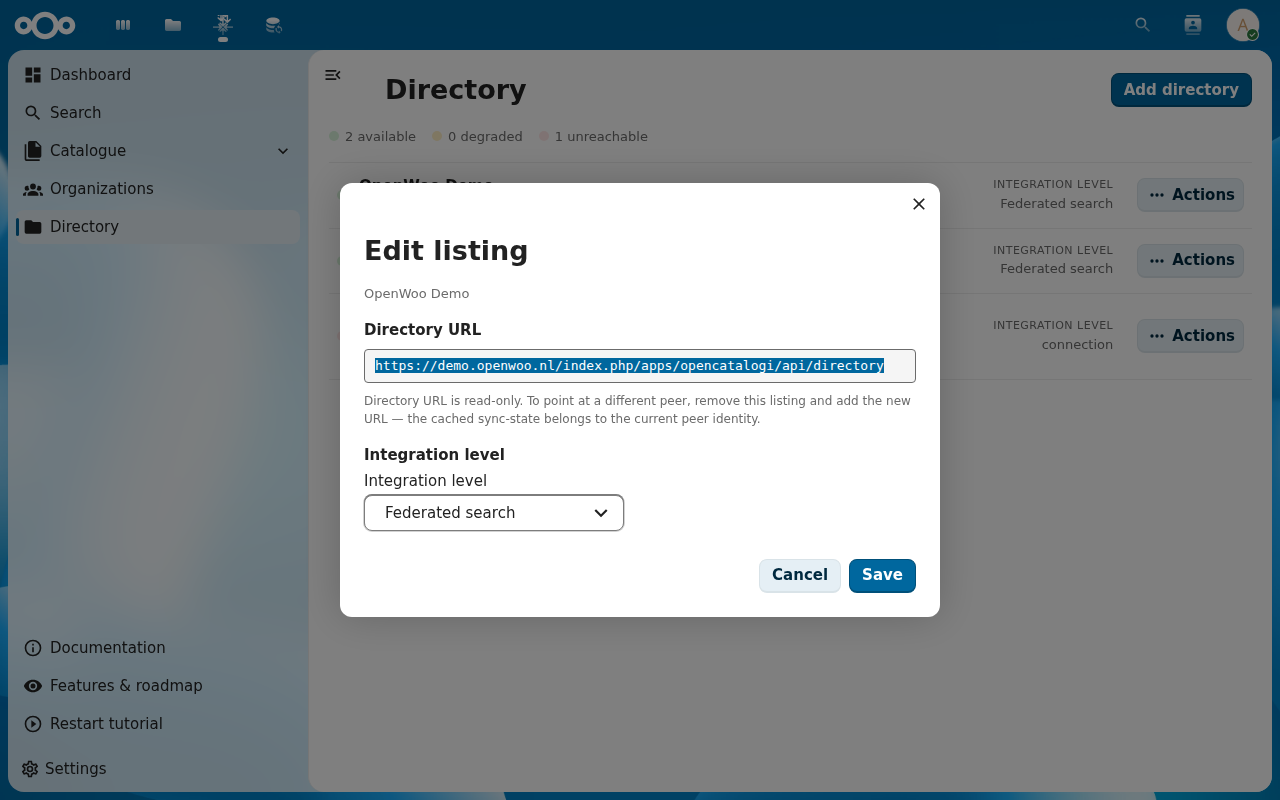

    Edit listing dialog showing directory URL and integration level dropdown

  5. Verify the federation is live by opening Search and running any query. The search fans out to every peer with integration level Federated search and combines the results with your local publications. If nothing matches, the page reads No matching publications across the federation — federation is still working, the peers just have no data on that term.

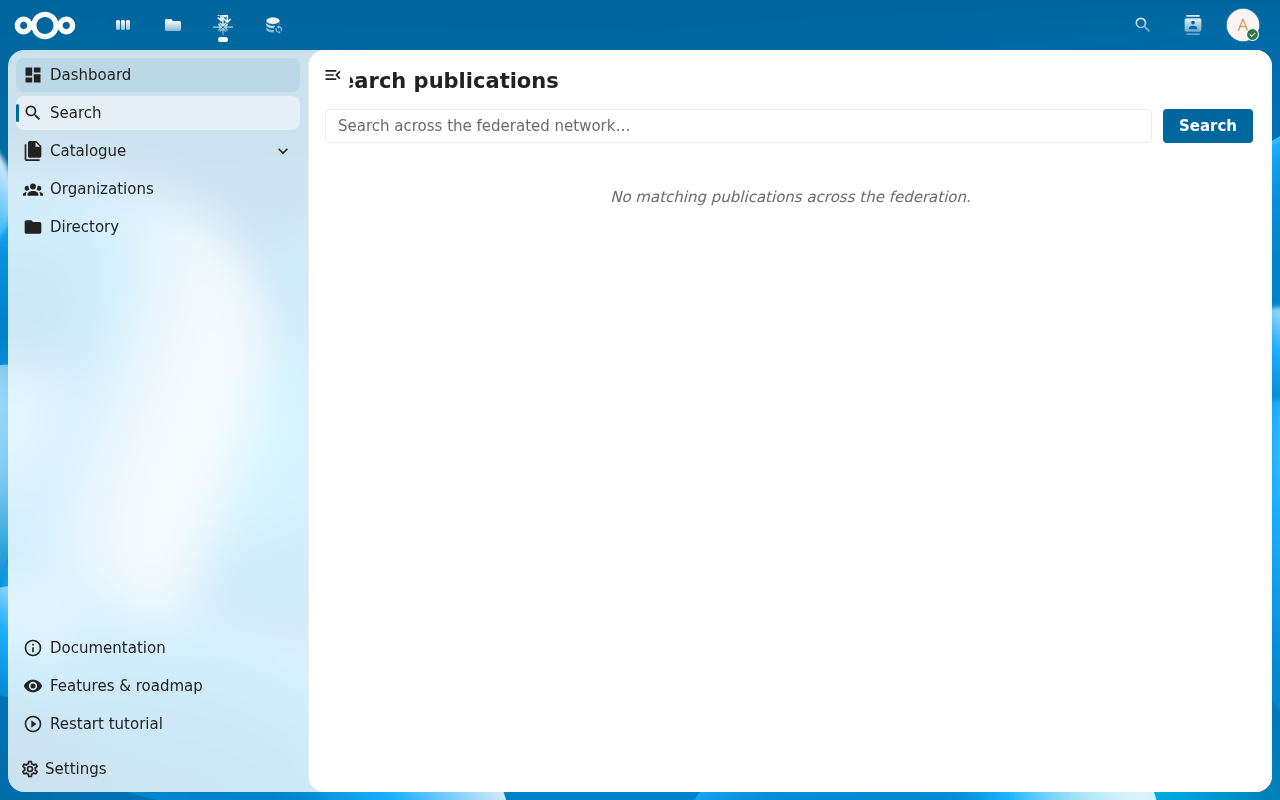

    Search publications page showing the federated search UI

Verification​

  • The peer row in Directory shows an available status dot and a real integration level.
  • The three counters at the top of the Directory page reflect the network state — e.g. 2 available · 0 degraded · 1 unreachable.
  • GET /index.php/apps/opencatalogi/api/listings returns the peer with a statusCode: 200 and a recent lastSync timestamp.

Common issues​

SymptomFix
Add directory returns Failed listings > 0The peer responded but one or more of its catalog descriptors was rejected. Check data/nextcloud.log for the schema-validation error, then either fix the peer or ignore the specific catalog.
Status stays unreachableThe peer's directory URL is not reachable from this server — DNS, TLS, or an outbound firewall rule. curl the URL from inside the container to isolate.
Search returns nothing even after adding a peerThe peer's integration level is Connection, not Federated search. Open the peer's Actions → Edit and change it.
Sync ran but the peer isn't in the listThe peer returned 0 catalog listings (New: 0, Updated: 0, Failed: 0). Add the peer's own catalogs on their side first, or point at a different peer.
