A federated search portal, from nothing

At the end of this tutorial an anonymous visitor opens a public portal, types a word, and gets publications back from more than one catalogue — each result naming the catalogue it came from.

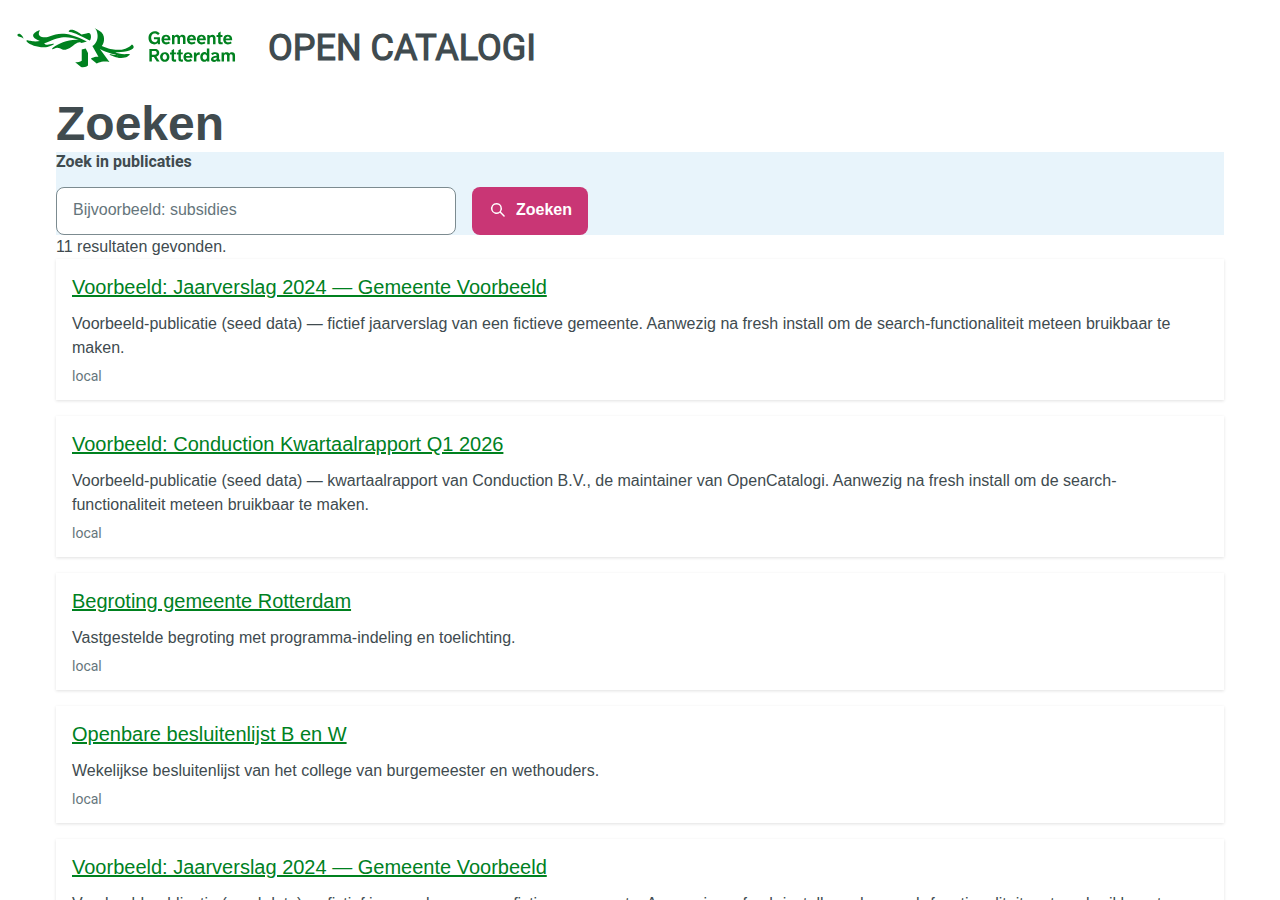

The Rotterdam-themed portal listing publications from two catalogues

There are two roads to it, and they are not equivalent:

Road 1 — Docker ComposeRoad 2 — App Store
Timeone command, ~6 minutes~20 minutes
Federates witha second local cataloguedirectory.opencatalogi.nl
Needs the internetnoyes
Shows federated resultsyesno — see below
Good forseeing it work, demos, developmentinstalling on your own instance

Take Road 1 first even if Road 2 is your goal. It is the only one that shows you what a working federation looks like, which is what you need in order to recognise a broken one.

Before you start: the national directory is empty​

directory.opencatalogi.nl is the directory a fresh OpenCatalogi points at by default. Asked for its listings on 2026-08-20 it answered:

$ curl https://directory.opencatalogi.nl/apps/opencatalogi/api/directory
{"results":[],"total":0}

That is an HTTP 200. Nothing is broken and nothing is misconfigured — there is simply nothing listed there yet. An instance that federates with it will sync successfully and receive zero catalogues, and a portal reading the result shows an empty list.

This matters because an empty portal looks exactly like a broken install. If you follow Road 2 and see no federated results, that is expected, and this is why.

Road 1 exists so you can see the mechanism actually work.

Road 1 — the prefab rig​

What it starts​

Two independent Nextcloud instances plus a database:

  • oc-demo-main on http://localhost:8580 — OpenRegister, OpenCatalogi, Portaliq and NLDesign. This one serves the portal.
  • oc-demo-peer on http://localhost:8581 — OpenRegister and OpenCatalogi only. A second catalogue with its own publications.

The peer deliberately does not run Portaliq. A publication from the peer appearing on the main portal therefore cannot have got there any way except federation.

Run it​

git clone https://github.com/ConductionNL/opencatalogi
cd opencatalogi

# Sibling checkouts of the other three apps, or set the *_PATH variables.
docker compose -f docker-compose.demo.yml up -d
bash docker/demo/provision.sh

provision.sh enables the apps in dependency order, seeds the peer, federates the two instances, and then verifies the result rather than announcing it:

==> Verifying
  ok   the portal resolves and has a title (Open Catalogi)
  ok   the page at / renders and carries the search widget (federatedSearch)
  ok   the federated search endpoint returns publications (11)
  ok   the theme facet returns buckets on the local path (3)
  KNOWN  facets are dropped when results are federated — 0 buckets over 11 results.
  ok   a publication that exists ONLY on the peer is searchable, and names its source (oc-demo-peer)

Demo rig ready.

Then open http://localhost:8580/index.php/apps/portaliq/site.

Prove it is really federated​

Search for subsidies. One result comes back, and it is sourced from oc-demo-peer:

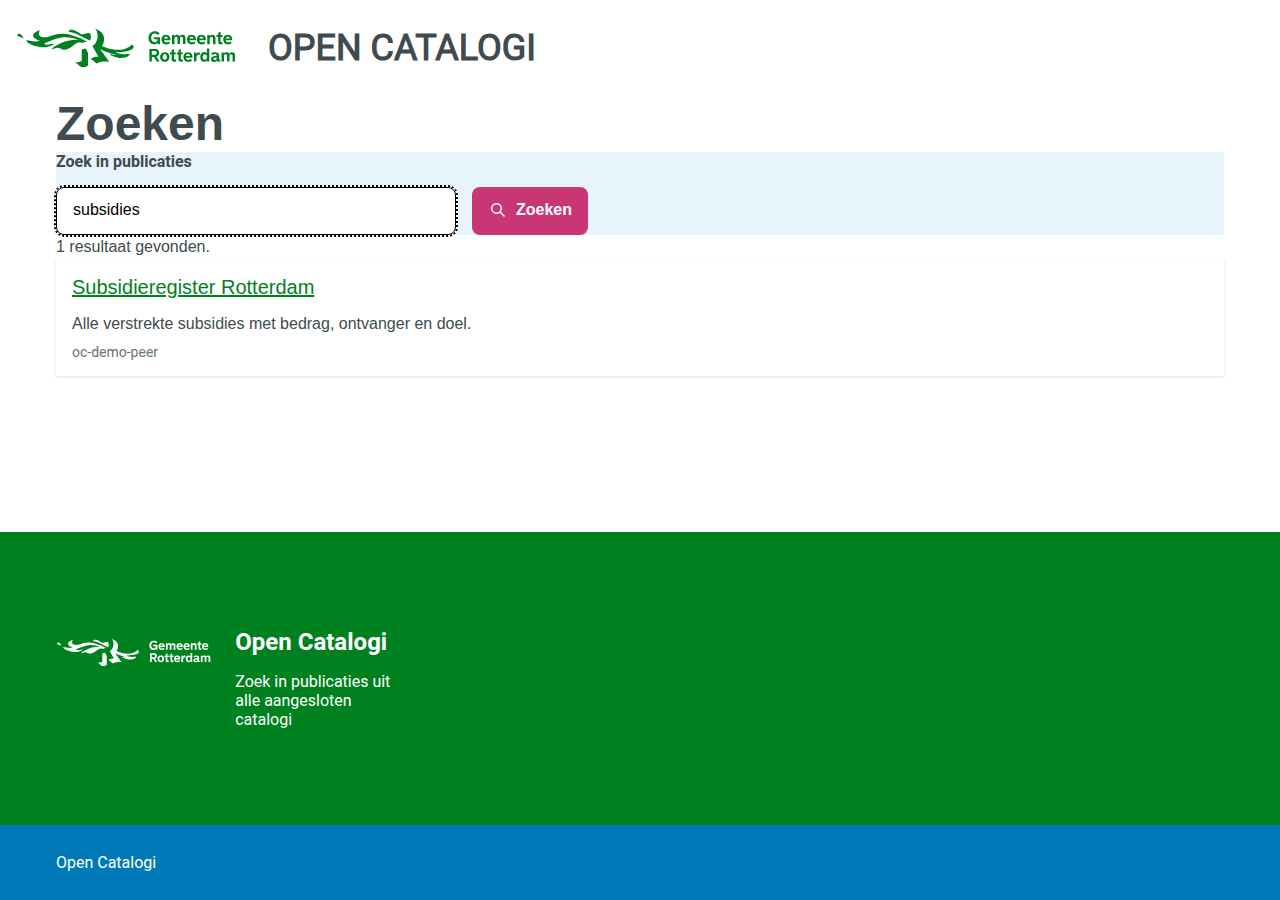

A single result, sourced from the peer catalogue

Subsidieregister Rotterdam exists only on the peer. There is no copy of it on the instance serving the portal — you can confirm that from the other side:

# On the portal instance's own catalogue: not there.
curl -s "http://localhost:8580/index.php/apps/opencatalogi/api/federation/publications?_aggregate=false&_search=Subsidieregister" \
  | python3 -c 'import sys,json; print(json.load(sys.stdin)["total"])'
# 0

# Across the federation: there.
curl -s "http://localhost:8580/index.php/apps/opencatalogi/api/federation/publications?_search=Subsidieregister" \
  | python3 -c 'import sys,json; print(json.load(sys.stdin)["total"])'
# 1

That difference — _aggregate=false returning 0 and the default returning 1 — is federation, measured rather than asserted.

Tear it down​

docker compose -f docker-compose.demo.yml down -v

-v removes the seeded data too.

Road 2 — installing by hand​

Install order is not a preference​

OpenRegister  →  NLDesign  →  OpenCatalogi  →  Portaliq

OpenRegister owns the register and schema machinery every other app's install hook writes into. Install OpenCatalogi or Portaliq first and their setup steps find no OpenRegister, warn, and provision nothing — an install that reports success and leaves you with an empty instance.

Portaliq goes last because the portal it seeds carries a search page pointed at OpenCatalogi.

Getting beta versions​

The federated search block ships in Portaliq 0.1.9+ and OpenCatalogi 1.0.9+. At the time of writing those are pre-release, so the App Store will not offer them until your instance is on the beta channel:

  1. Settings → Administration → Apps
  2. Set the update channel to beta
  3. Install in the order above

To test locally without waiting for a release, the app_versions app installs a specific version from a local build.

Bind a hostname before the portal will serve​

Portaliq's install hook seeds a portal — but with no domains, so it does not answer on any hostname yet. That is deliberate, and it is the one step you have to do yourself.

A portal serves a hostname only when that domain is marked verified, and there is no "default portal" fallback. Without that rule, pointing DNS at a multi-tenant Portaliq would be enough to serve one tenant's content under another tenant's domain. An install hook that marked a domain verified would be asserting control of a hostname on your behalf, which is exactly what the flag exists to prevent.

So: open the portal in Portaliq's admin, add your hostname, and verify it.

Until then the portal is reachable by slug at /site?portal=demo.

What you will and will not see​

You will get a themed, working portal that searches your own publications.

You will not see federated results, because the national directory is empty (see the top of this page). Nothing is wrong with your install.

Theming​

The portal in the screenshots uses the rotterdam token set from the NLDesign app: RODS colours, RODS typography, and Rotterdam's own mapping onto NL Design System components — which is why the primary action button is magenta rather than green, and why links are black until you hover them. Those are Rotterdam's decisions, taken verbatim from @gemeente-rotterdam/design-tokens.

Change one field on the portal object to re-theme it:

# Any set listed in nldesign's token-sets.json
theme: "denhaag"

A theme that does not resolve renders the portal unstyled rather than falling back to another municipality's brand. An unstyled page is visibly broken and gets reported; a Venray portal wearing Tilburg's colours looks completely fine and is wrong in the one way nobody screenshots.

Rotterdam is shipped as an example theme

The set is included so the demo has a real municipal design to wear. It is not an endorsement by, or an affiliation with, the Gemeente Rotterdam.

Known limitations​

These are measured on the rig above, not theoretical. Each one is a thing you will notice and should not spend time debugging.

Facet buckets cover local publications only​

The federated request does return facets. They are the local facets:

RequestResultsBuckets
?_facets[themes][type]=terms&_aggregate=false4bestuur=2, openbaarheid=1, financien=1
?_facets[themes][type]=terms11bestuur=2, openbaarheid=1, financien=1

Identical buckets, different totals. The seven federated publications carry themes of their own — vergunningen, ruimte, verkeer — and appear in no bucket at all.

So a visitor filtering by theme is filtering a corpus that is not the one they are searching. Counting buckets hides this completely: three buckets come back either way, and the feature looks like it works. provision.sh compares the two bucket sets and prints the finding on every run.

If your instance has no local publications carrying themes, you will see no facet column at all — same cause, different symptom.

There is no filter on the source catalogue​

Every result carries @self.directory, and the API accepts @self[directory]=<peer> — and answers total: 0, on a corpus where every row has that field populated. _directory=<peer> is accepted and ignored.

So the source is shown on each result and cannot be filtered on. A control that silently empties the page is worse than an absent one: the visitor concludes the catalogue is empty and nothing contradicts them.

A result links to its object in the OpenRegister API, which is JSON. It resolves, and it is not a page for a citizen. A publication detail page is a missing feature, not a broken link.

Directory sync must be authenticated​

POST /api/directory is a public endpoint, so an anonymous call is accepted — and then fails to write anything, because creating a Listing is a write that OpenRegister refuses to Anonymous:

User 'Anonymous' does not have permission to 'create' objects in schema 'Listing'

The endpoint still answers {"message": "Directory synchronized successfully"}. The failure appears only in the counts, so read listings_created / listings_failed, never the message.

Federating with a peer on a private network needs an opt-in​

OpenCatalogi refuses directory URLs that resolve to private or loopback addresses — an SSRF guard, and on an internet-facing instance it is doing exactly its job. Two containers on a Docker network are all private addresses, so the rig turns the guard off for private ranges only:

occ config:app:set opencatalogi allow_internal_directories --value yes

It defaults to no. The cloud-metadata endpoint (169.254.169.254) and the unspecified addresses stay blocked whatever this is set to, and every address it lets through is logged at WARNING.

Never set this on an internet-facing instance.

Troubleshooting​

The portal shows "Pagina niet gevonden". The portal resolved but has no page at that route. Content is scoped by portal slug, not by id — a page whose portal field holds the portal's UUID matches nothing, and the portal renders its own header and footer around a 404.

The portal shows nothing at all / every request 404s. No verified domain is bound. See Bind a hostname above.

Search returns 0 results, but the objects exist. Publications are readable anonymously only through a conditional rule:

"read": [{"group": "public", "match": {"publicationDate": {"$lte": "$now"}}}, "authenticated"]

A publication with no publicationDate — or one dated in the future — matches no public rule. It stays perfectly visible to you as admin, which is what makes this one hard to spot: the object is there, the count is right, and the portal is empty.

A field is stored but cannot be searched or faceted. It is probably not declared on the schema. An undeclared field is stored, returned on the object, and invisible to search. themes is declared on publication; categories is not — it belongs to the software/publiccode schema.
